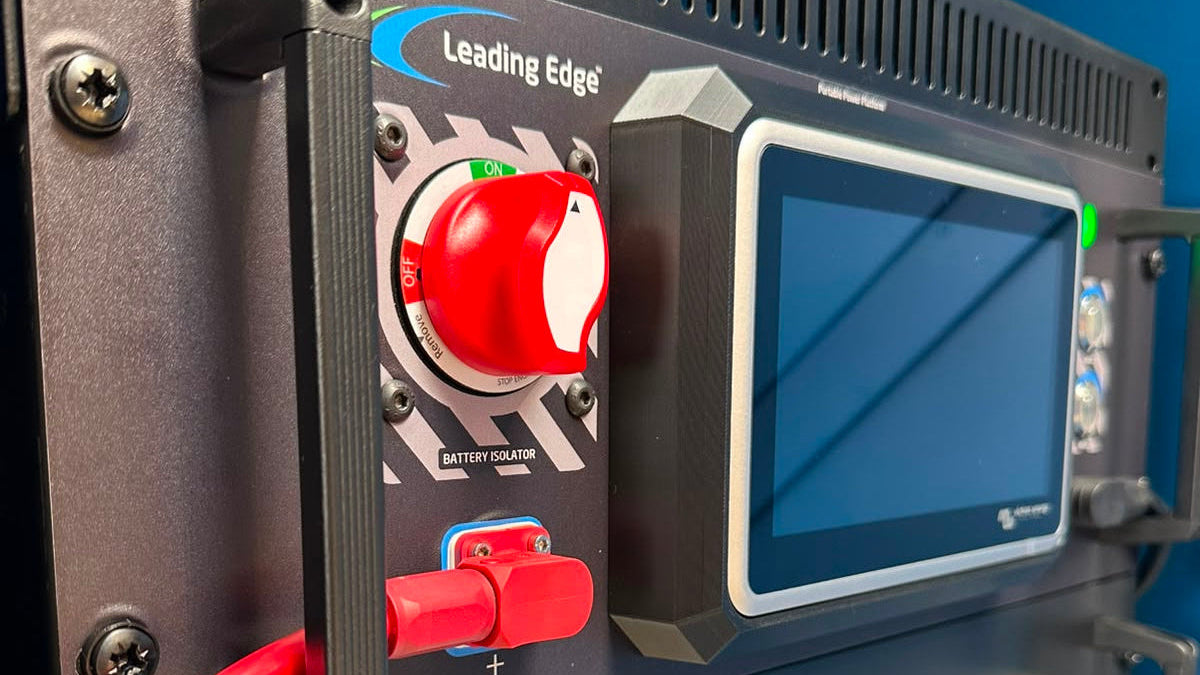

PowerRack

Remote Monitoring as Standard

Live system data on site and online.

Configure it as a BESS, or with batteries and inverter in one rack.

Add capacity without upgrading your supply, or run off-grid.

36U racks for plant rooms, or an IP55 galvanised field cabinet.

System and Scaling

Operation: Unlimited racks per phase
Phases: Single 230 V or three-phase 400 V
Parallel: Shared AC bus across racks
Microgrid: Grid-connected, backup or off-grid
Configuration and Storage

Chemistry: LiFePO4, 48 V
Per rack: Up to 40 kWh (5 kWh modules)
Expansion: Add racks in parallel
Build: BESS only, or batteries + inverter in one rack
Inverter-Charger

Platform: Victron Multi RS Solar
Phases: 230 V single or 400 V three-phase
Frequency: 50 / 60 Hz, pure sine
Pass-through: Up to 50 A, seamless transfer
Charging: Up to 100 A
Output: 6 kVA / ~5 kW per rack; up to 60 kVA per system
Monitoring and Control

On the rack: Victron GX touchscreen
Remote: VRM portal, as standard
Sources: Managed automatically
Installation

Indoor: 36U free-standing, lockable
Outdoor: 36U field cabinet, IP55 / IK10
Size: 1975 H × 750 W × 800 D mm
Indoor size: 1868 H × 600 W × 600 D mm
Weight: Approximately 400 kg (40 kWh rack)
Cooling: Air conditioning on request
Origin: Designed and built in Britain
Outdoor build: Galvanised steel, ventilated, −40 to +80 °C
Solar and Other Inputs

Solar PV: Up to 6 kWp per rack
Trackers: 2 × independent MPPT
Max PV voltage: 450 V DC
Also Accepts: Wind, hydro, generator, grid
Fuel Cell: Fuel cell Hydrogen or methanol (option)

Battery storage only, or batteries and inverter-charger in one rack. Systems scale to 60 kVA, single or three-phase.

Stored energy covers the peaks, so you can add EV charging or new equipment without a supply upgrade.

Solar, wind, hydro, generator, grid and hydrogen or methanol fuel cells, all managed automatically.

Up to 40 kWh of LiFePO4 in each rack. Add racks in parallel as demand grows.

Touchscreen control on the rack and live monitoring online, as standard.

36U racks for plant rooms and garages, or a 36U IP55 galvanised field cabinet outdoors. Air conditioning on request.

If you are interested in this product then get in touch to talk about your build!
