PowerTrailer

Solar, storage and a mast on wheels. Configured to your needs, with an optional generator or fuel cell.

Highly Portable, Highly Durable

Single-axle trailer. Galvanised, zinc-plated and stainless steel build.

Remote Monitoring as Standard

Real-time system data from wherever you are.

Power Anywhere

Standalone solar + battery, or hybrid with an on-board generator or fuel cell.

Telescopic Mast

4 m geared mast, raised with a drill. For CCTV, lighting, comms or wind.

Specification

  • Energy Storage

    Chemistry: LFP lithium, 48 V

    Capacity: 10 kWh base, up to 30 kWh

    Charging: Up to 4.5 kW AC input

  • Generation

    Configuration: Solar + BESS, or hybrid

    Solar PV: 1.86 kWp, 4 × 465 W panels

    Generator: Optional on-board petrol, 3 kW

    Fuel Cell: Methanol or hydrogen (option)

    Wind: Array up to 1 kW (option)

    Grid: 230 V AC charge input (option)

    Solar Array: Fold-out, tilt-adjustable, folds flat for transit

  • Output and Control

    Enclosure: Weather-sealed, locking doors

    Equipment: Twin 19" anti-vibration rack bays

    Access: Slide-out equipment bay

    Stability: Four corner stabiliser jacks

    Origin: Designed and built in Britain

    Fixings: Galvanised, zinc-plated and stainless steel

  • Build & Durability

    AC Output: Up to 6 kW, 230 V single phase

    DC Outputs: 48 V / 24 V / 12 V

    Lighting: Integrated lighting (option)

    Monitoring: Real-time remote, as standard

  • Size and Transport

    Chassis: KNOTT 1900 kg single axle

    Deployed Length: 4.6 m long with solar out

    Stability: From 750 kg, depending on configuration

    Weight: Towable; fork channels for lifting

    Handling Dimensions: 2.3 L × 2.0 W × 2.2 H m (excluding hitch)

  • Mast

    Display: 4 m telescopic, screw-thread

    Carries: CCTV, lighting, comms, wind turbine

    Options: With or without mast

    Operation: Geared, raised with a standard drill

  • Key Performance Figures

    30 kWh: Maximum battery storage

    6 kW: Maximum AC output

    4.5 kW: Maximum battery charging

    1.86 kWp: Fold-out solar

Where It Earns Its Keep

Overview

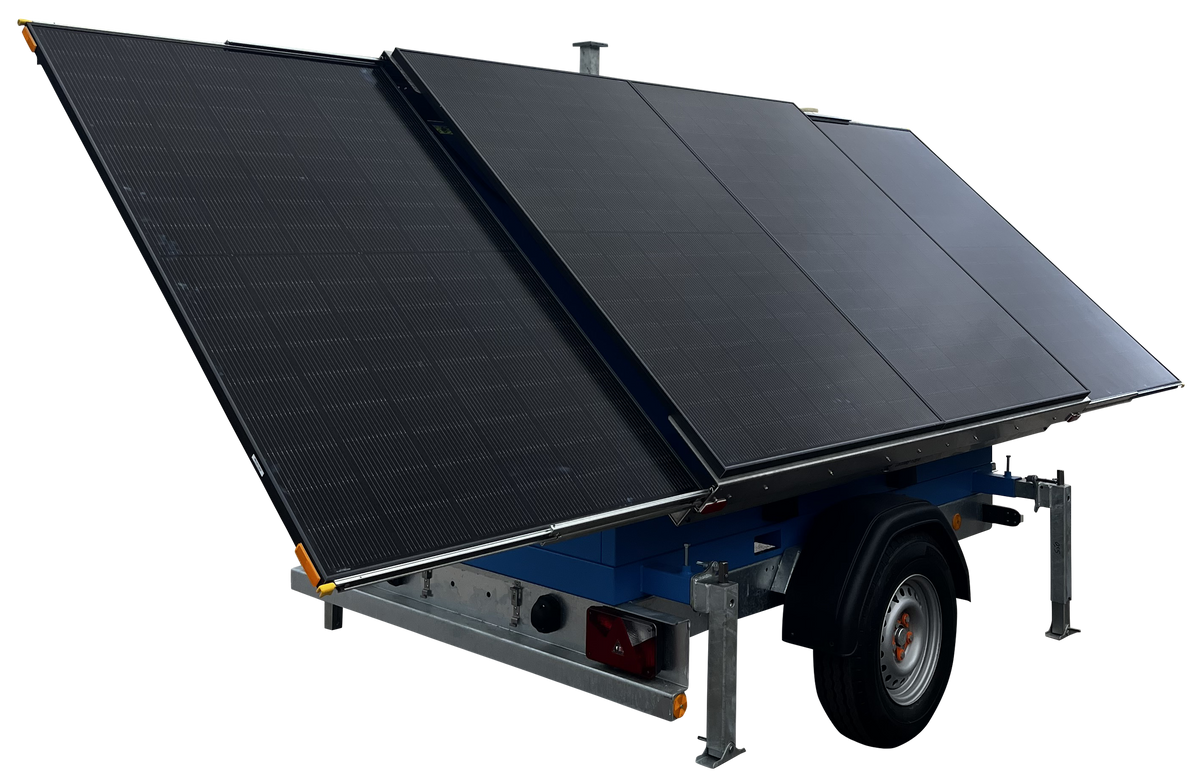

Slide-out Solar Array

Four 465 W panels give 1.86 kWp. Tilt them to the sun on site, fold them flat for the road.

Storage That Scales

48 V lithium (LFP) storage from 10 kWh up to 30 kWh. Size it to the load and the season.

Solar-Only or Hybrid

Run it as standalone solar + battery, or add an on-board generator or fuel cell for hybrid operation. Small wind turbine also available.

Mast Under the Roof

A 4 m screw-thread mast with gearbox, raised with a standard drill. Carries cameras, lights, comms or a wind turbine.

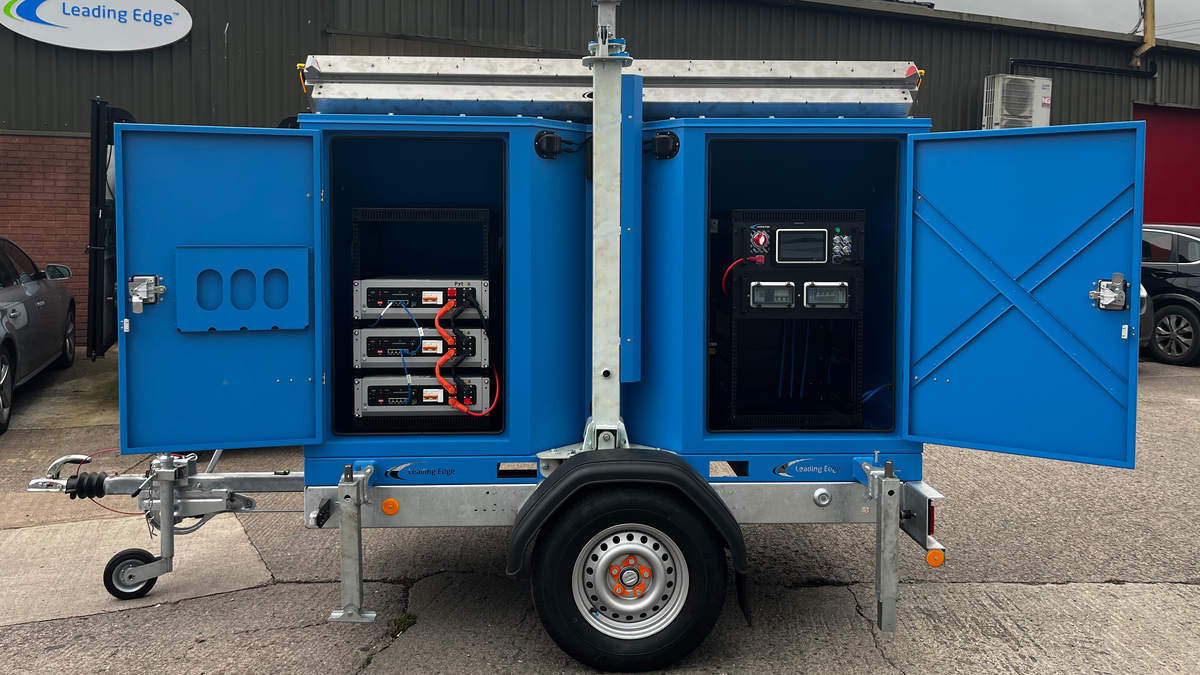

Room for Your Kit

Twin 19" anti-vibration rack bays and a slide-out equipment bay, behind locking, weather-sealed doors.

Operation Oversite

Real-time remote monitoring as standard. Check it from the office, not the van.

  • 30 kWh

    Max Battery Storage

  • 1.86 kWp

    Fold-out solar

  • 6kW

    Max AC Output

  • 4.5kW

    Max Battery Charging

Contact us

If you are interested in this product then get in touch to talk about your build!
